Laws Of Motion PYQJEE Main 2021 (Online) 1st September Evening Shift

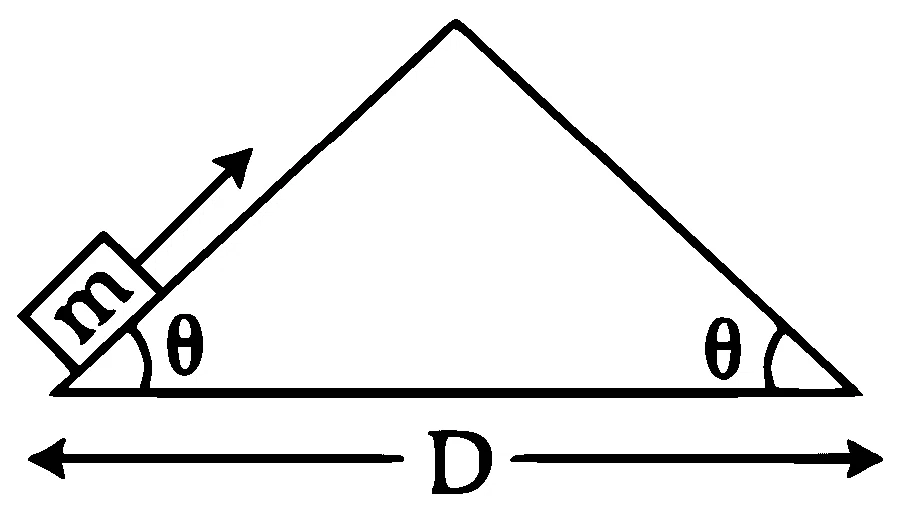

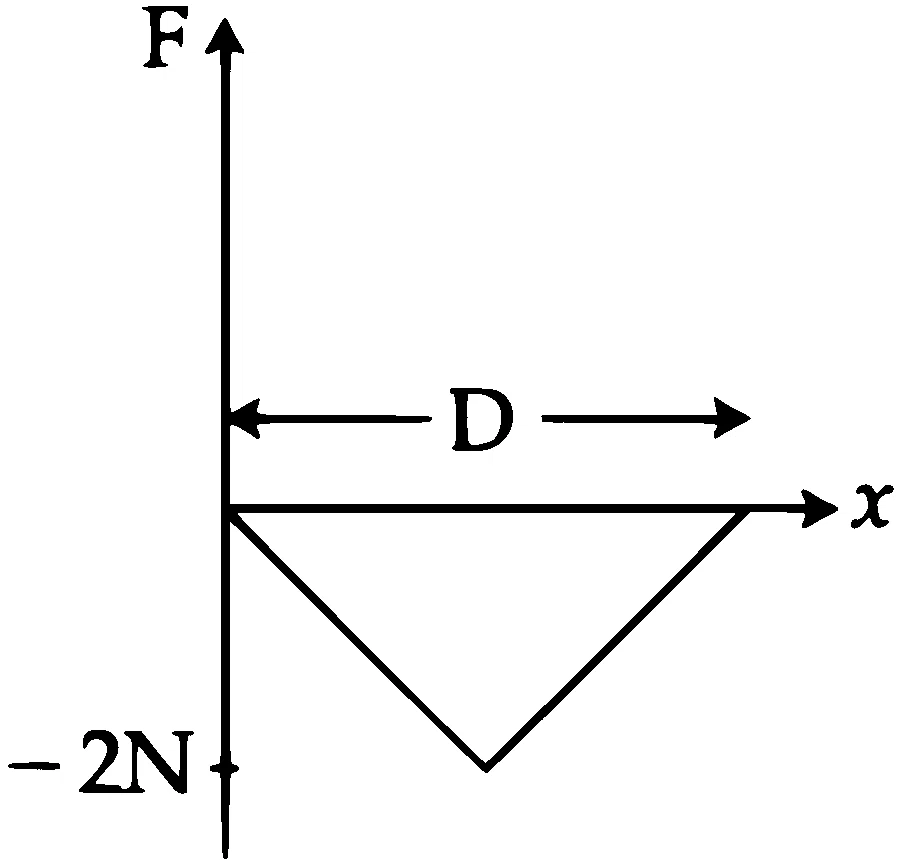

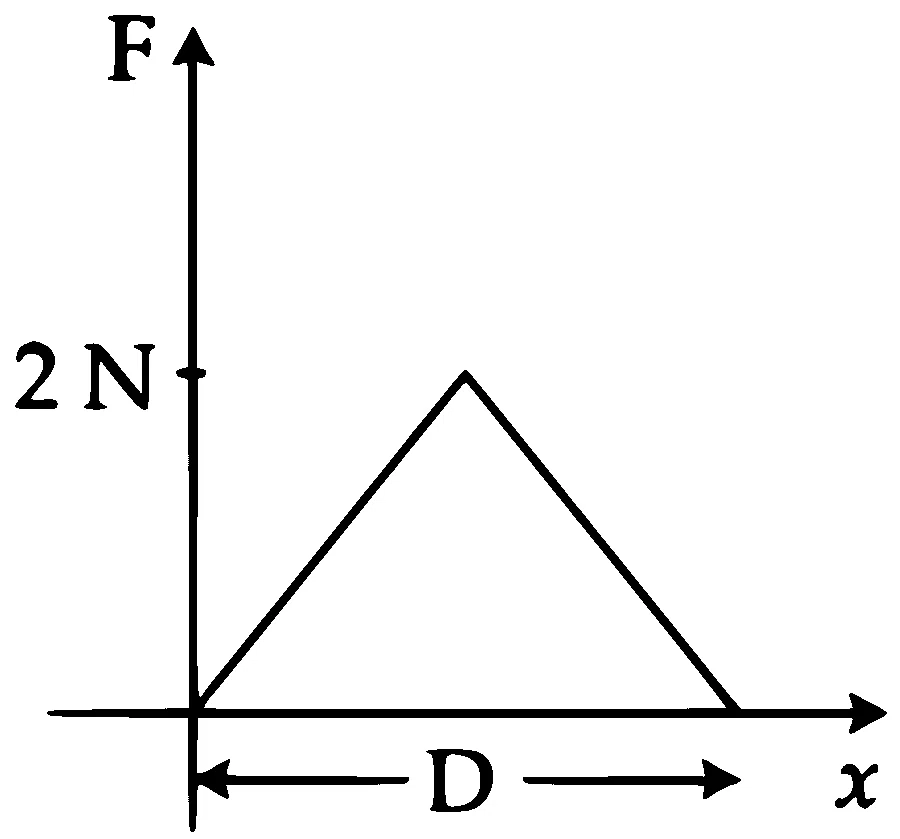

The correct applied force vs distance graph will be :
Solution
Correct option: C
Correct option: C
Identify The Force On Rising Parts
On the upward portions of the smooth track, the applied force is given as a constant
Fix The Sign Convention
Taking motion up the incline as positive, the force on upward sections is
Check The Descending Parts
On the downward portions, the direction reverses relative to the chosen positive direction, so the applied force is still of magnitude
Match The Graph
Thus the force-distance graph must alternate between constant positive and constant negative levels according to upward and downward motion. This matches option C.
