Electronic Devices PYQJEE Main 2021 (Online) 1st September Evening Shift
MCQ+4 / -12021

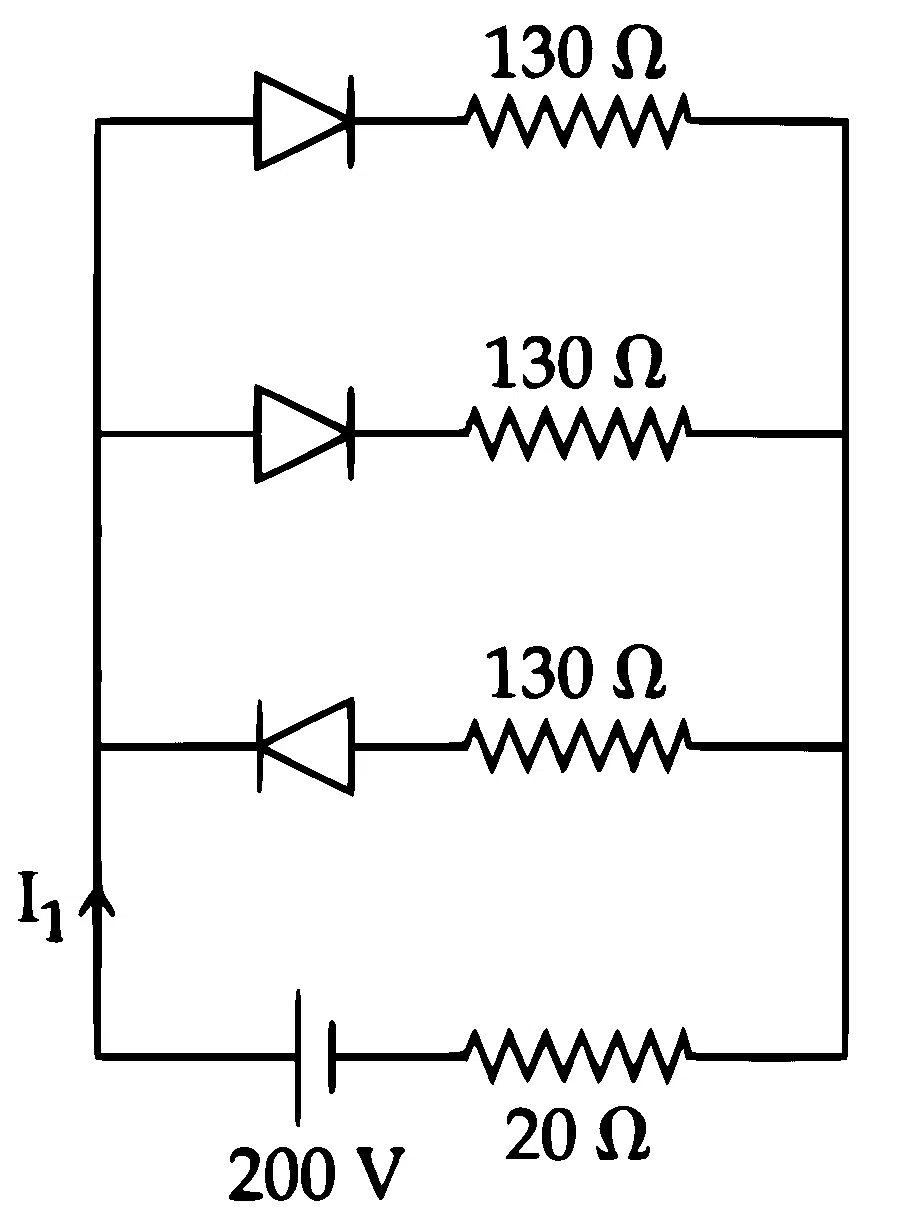

In the given figure, each diode has a forward bias resistance of 30 and infinite resistance in reverse bias. The current I1 will be :


Solution
Correct option: C
Correct option: C
Step 1
From the circuit, diodes
Step 2
In the equivalent circuit, the current through each forward-biased diode branch is
Step 3
Apply KVL around the loop starting from point A:
Step 4
Simplifying,
Hence, the correct option is C.
