Jee Main
Current Electricity
JEE Main 2021 (Online) 27th July Evening Shift
INTEGER+4 / -12021
For the circuit shown, the value of current at time t = 3.2 s will be _________ A.

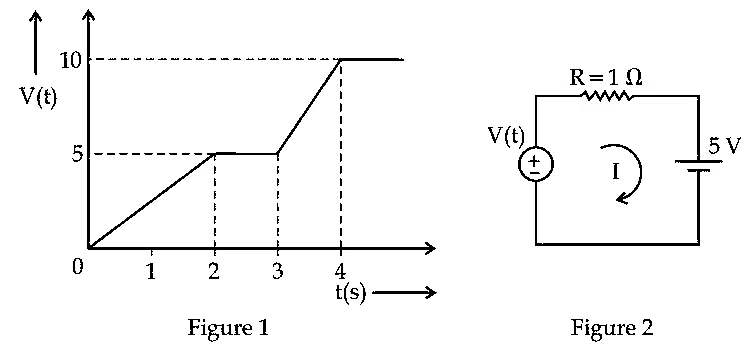

[Voltage distribution V(t) is shown by Fig. (1) and the circuit is shown in Fig. (2)]
