Electrochemistry

In a conductometric titration, small volume of titrant of higher concentration is added stepwise to a larger volume of titrate of much lower concentration, and the conductance is measured after each addition.

The limiting ionic conductivity $\left(\Lambda_0\right)$ values (in $\mathrm{mS} \mathrm{m}{ }^2 \mathrm{~mol}^{-1}$ ) for different ions in aqueous solutions are given below:

$$ \begin{array}{|c|c|c|c|c|c|c|c|c|c|} \hline \text { Ions } & \mathrm{Ag}^{+} & \mathrm{K}^{+} & \mathrm{Na}^{+} & \mathrm{H}^{+} & \mathrm{NO}_3^{-} & \mathrm{Cl}^{-} & \mathrm{SO}_4^{2-} & \mathrm{OH}^{-} & \mathrm{CH}_3 \mathrm{COO}^{-} \\ \hline \Lambda_0 & 6.2 & 7.4 & 5.0 & 35.0 & 7.2 & 7.6 & 16.0 & 19.9 & 4.1 \\ \hline \end{array} $$

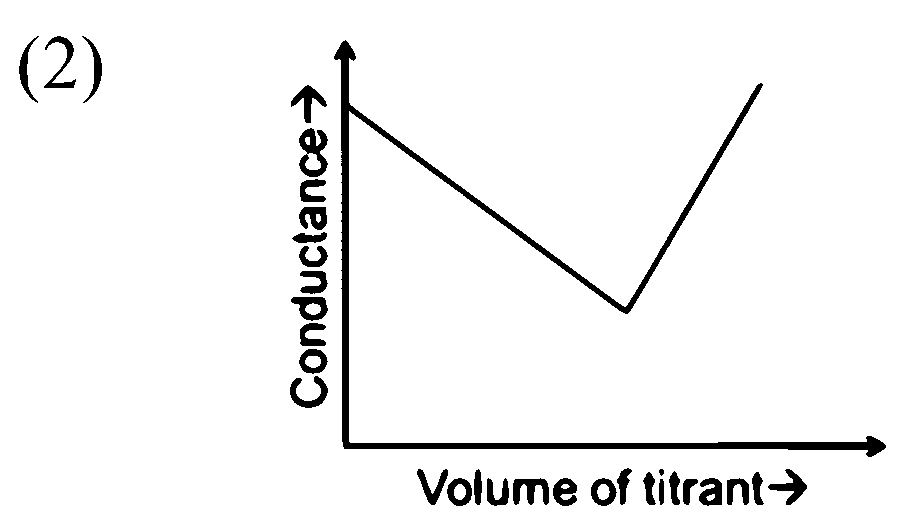

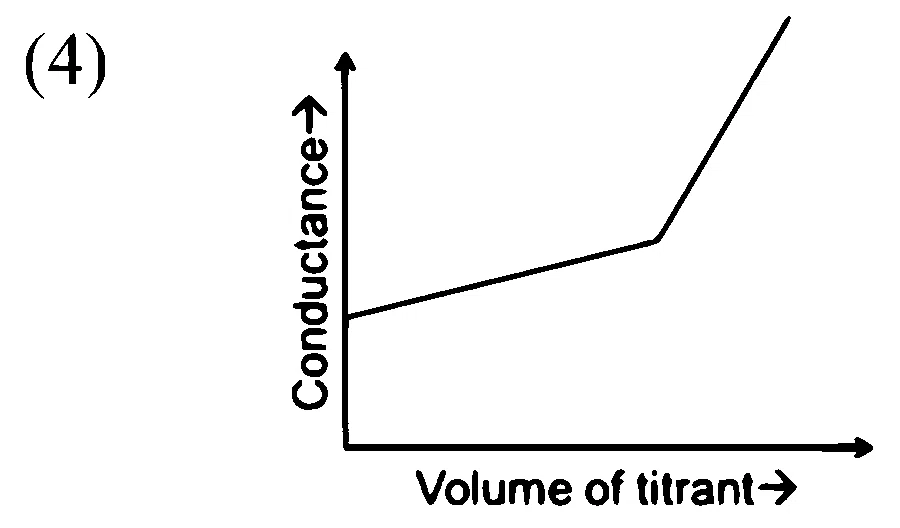

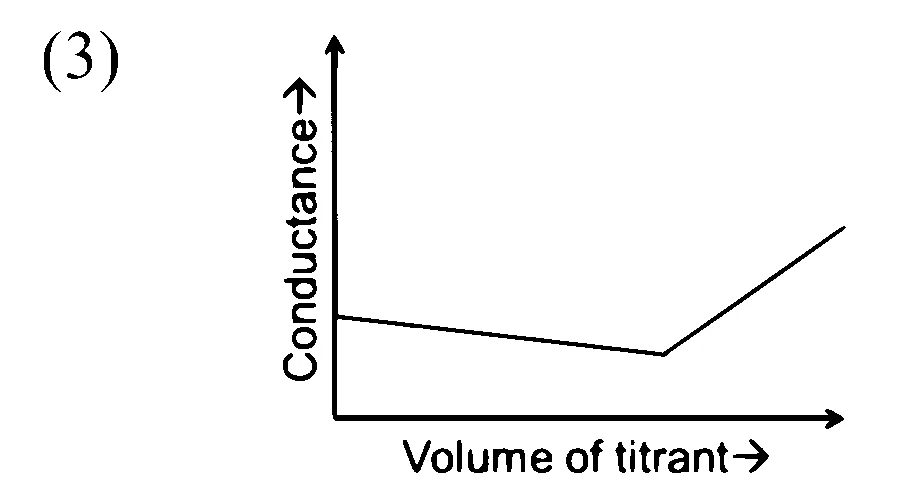

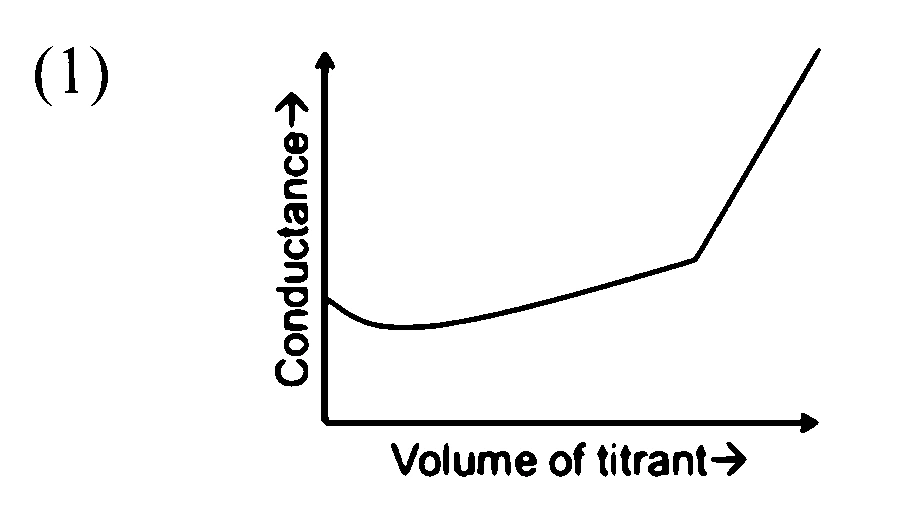

For different combinations of titrates and titrants given in List-I, the graphs of 'conductance' versus 'volume of titrant' are given in List-II.

Match each entry in List-I with the appropriate entry in List-II and choose the correct option.

table {
width: 80%;
border-collapse: collapse;
margin: 20px 0;
}
th {
background-color: blue;
color: white;
border: 1px solid lightgrey;
padding: 10px;
}
td {
border: 1px solid lightgrey;
padding: 10px;
text-align: left;
}

LIST-I	LIST-II
(P) Titrate: KCl Titrant: AgNO$_3$
(Q) Titrate: AgNO$_3$ Titrant: KCl
(R) Titrate: NaOH Titrant: HCl
(S) Titrate: NaOH Titrant: CH$_3$COOH
