JEE Advanced
Chemical Bonding And Molecular Structure PYQJEE Advanced 2023 Paper 2 Online
MCQ+3 / -12023

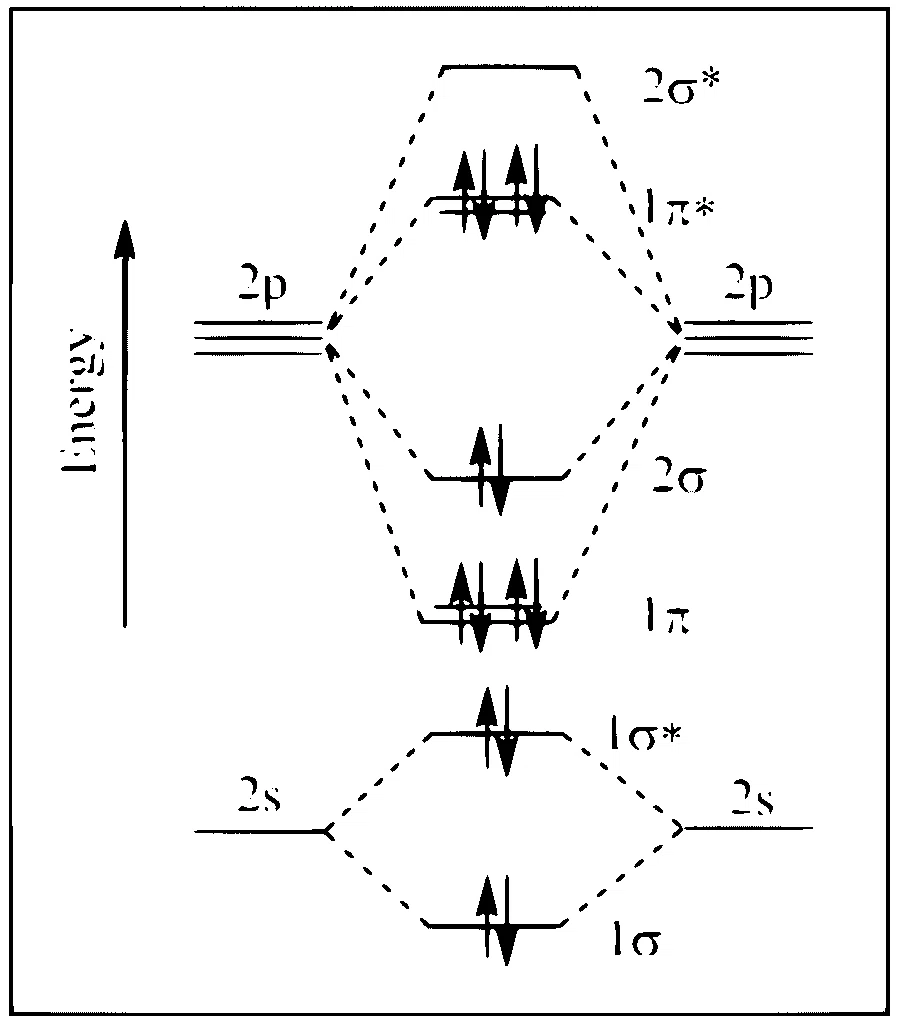

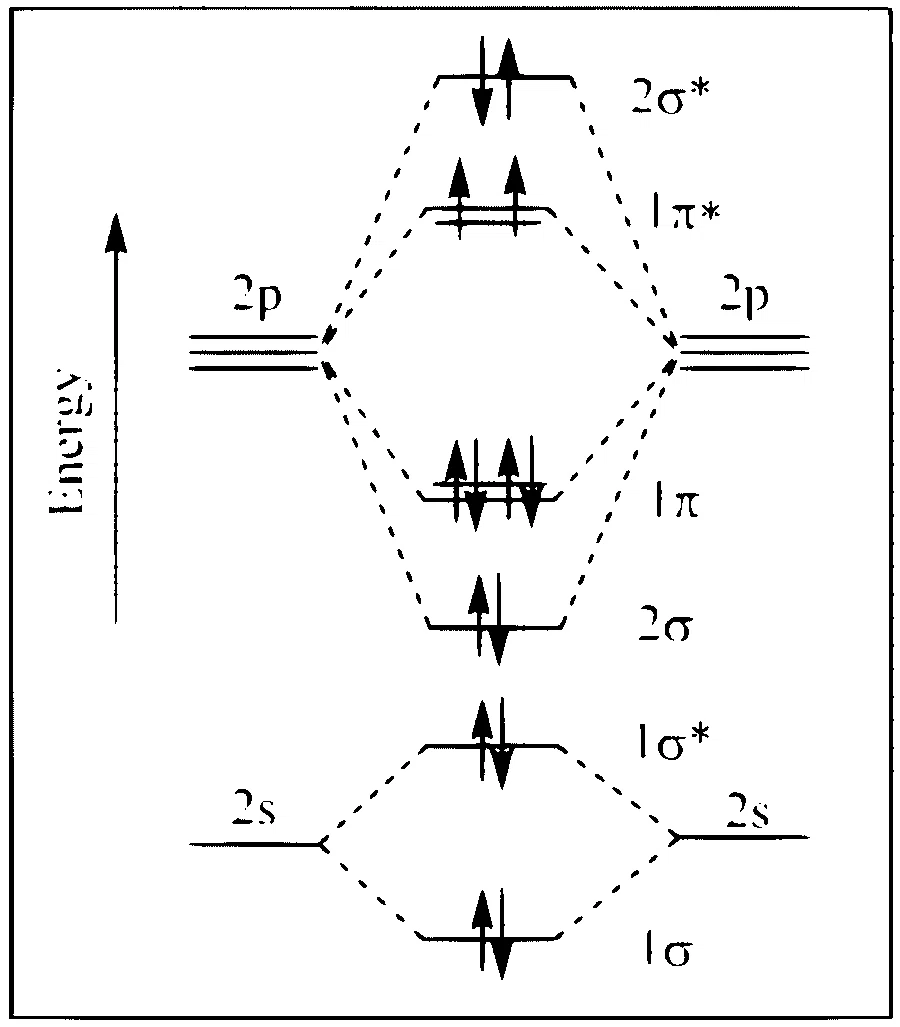

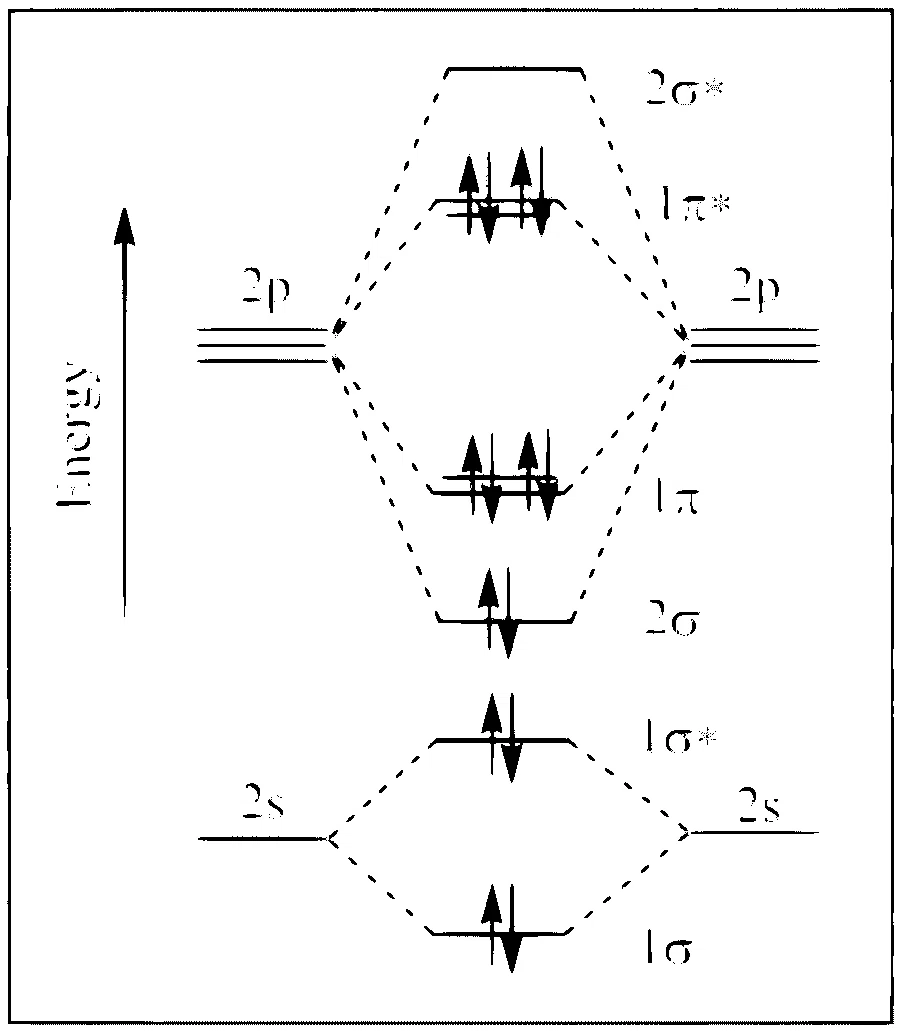

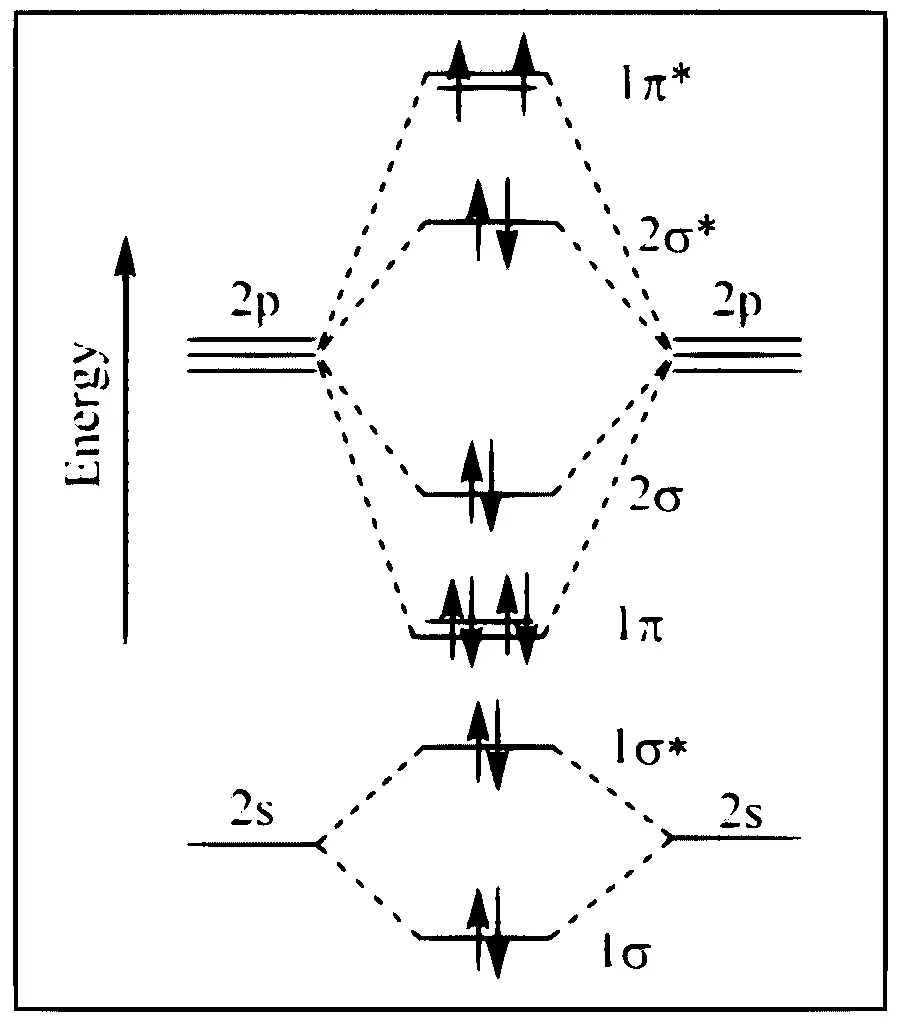

The correct molecular orbital diagram for molecule in the ground state is :
Solution
Correct option: C
The correct option is C.
Step 1
For molecules with total electrons from 15 to 20, use the molecular orbital order:
Step 2
Each fluorine atom has 9 electrons, so the total number of electrons in
Step 3
Fill 18 electrons in the above molecular orbitals according to the Aufbau principle, Pauli principle, and Hund's rule.
Step 4
The ground-state configuration is:
This matches option C.
