Waves PYQIIT-JEE 2011 Paper 2 Offline

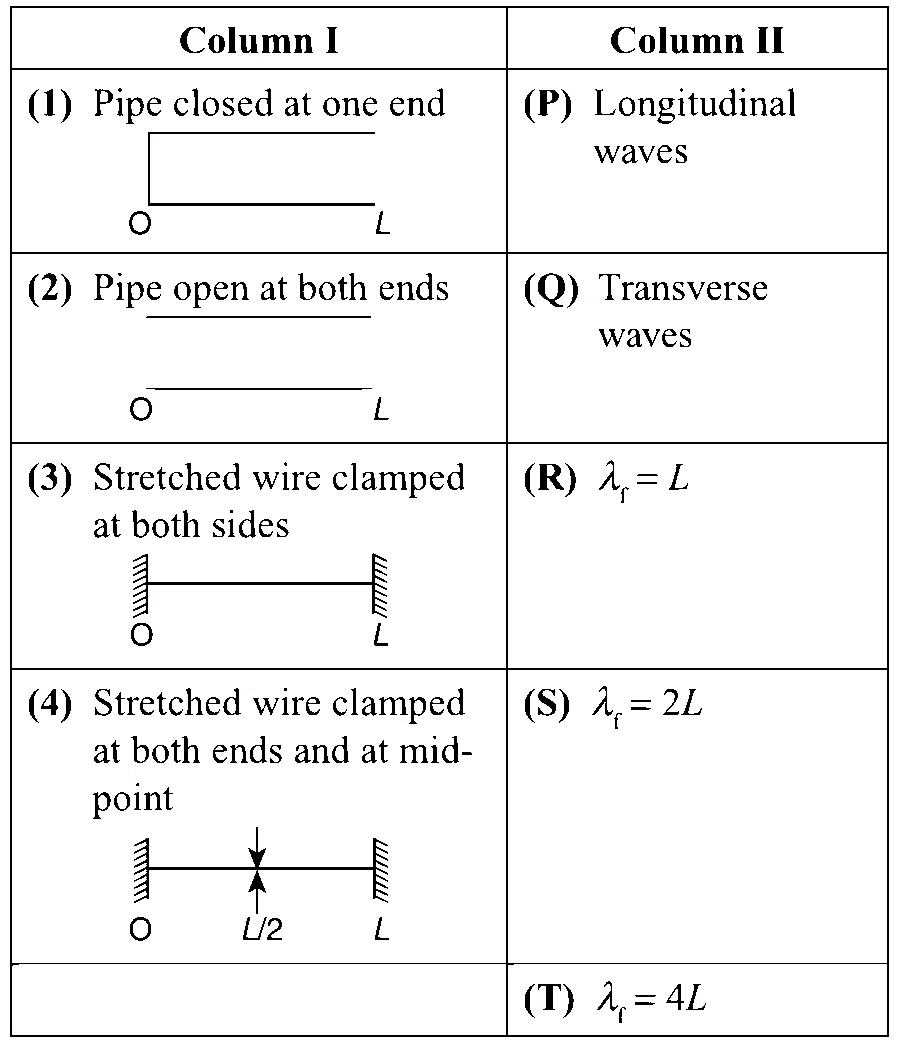

Column I shows four systems, each of the same length L, for producing standing waves. The lowest possible natural frequency of a system is called its fundamental frequency, whose wavelength is denoted as

Solution
Correct option: D
The correct option is D.
Closed pipe
For a pipe closed at one end, the fundamental mode has one-quarter wavelength in length
The wave in air is longitudinal.
Open pipe
For a pipe open at both ends, the fundamental mode has half a wavelength in length
Again, the sound wave is longitudinal.
String fixed at both ends
For a stretched wire clamped at both ends, the fundamental mode also satisfies
Vibrations of a string are transverse.
String fixed at ends and midpoint
If the same wire is additionally clamped at the midpoint, each half of length
The vibration remains transverse.
Match the statements
Combining these results gives
Hence the matching corresponds to option D.
