Gravitation PYQIIT-JEE 2009 Paper 1 Offline
Column II shows five systems in which two objects are labelled as X and Y. Also in each case a point P is shown. Column I gives some statements about X and/or Y. Match these statements to the appropriate system(s) from Column II:
| Column I | Column II | ||
|---|---|---|---|
| (A) | The force exerted by X on Y has a magnitude | (P) | ![]() Block Y of mass M left on a fixed inclined plane X, slides on it with a constant velocity. |

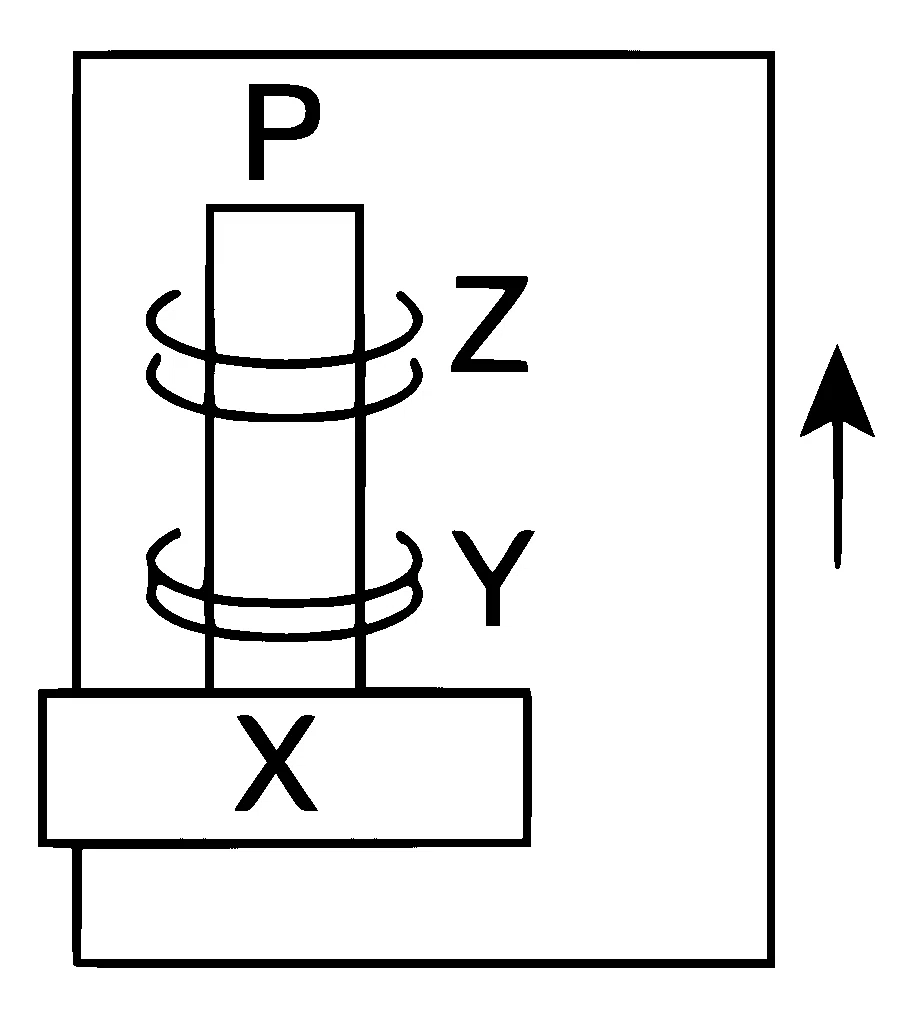

| (B) | The gravitational potential energy of X is continuously increasing. | (Q) | ![]() Two rings magnets Y and Z, each of mass M, are kept in frictionless vertical plastic stand so that they repel each other. Y rests on the base X and Z hangs in air in equilibrium. P is the topmost point of the stand on the common axis of the two rings. The whole system is in a lift that is going up with a constant velocity. |
| (C) | Mechanical energy of the system X + Y is continuously decreasing. | (R) | ![]() A pulley Y of mass |

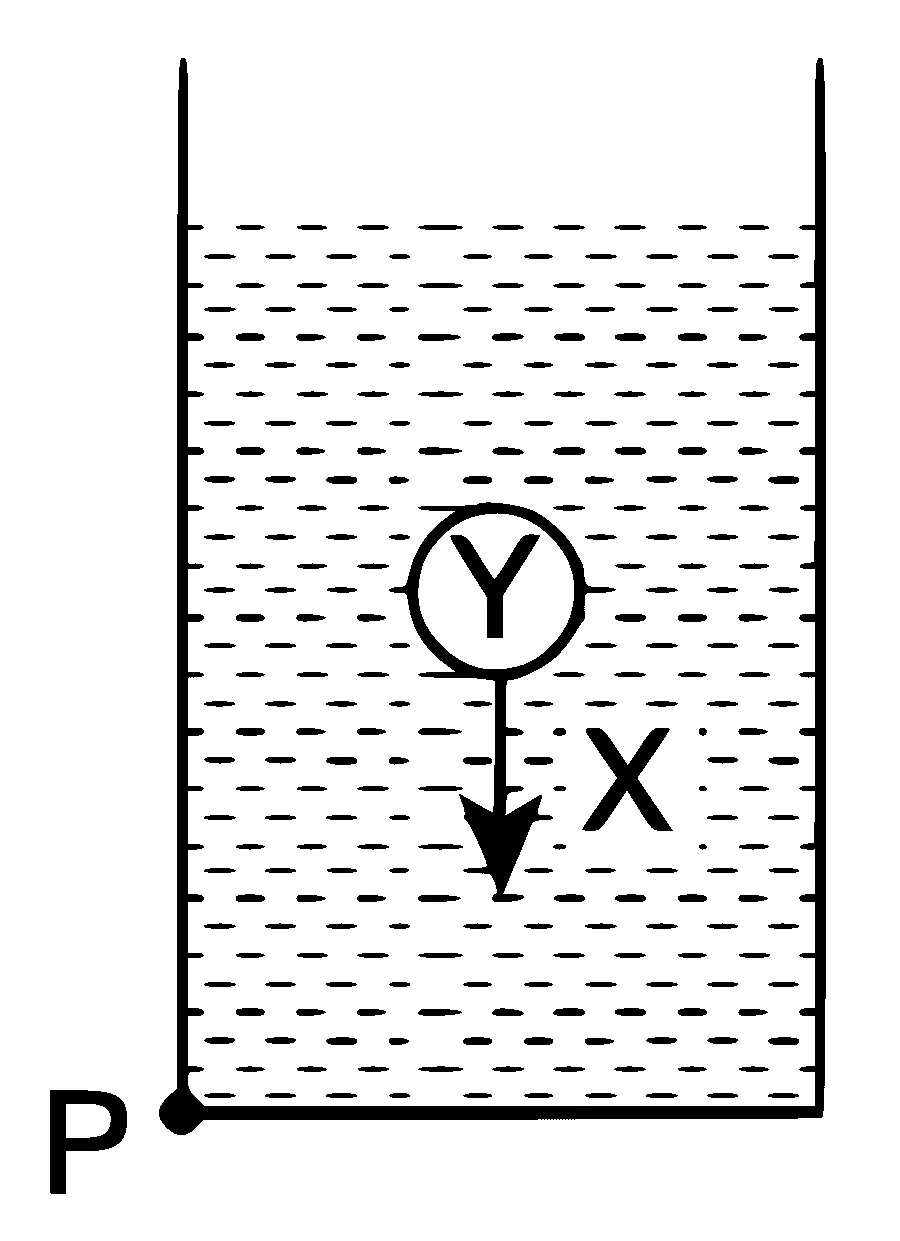

| (D) | The torque of the weight of Y about point is zero. | (S) | ![]() A sphere Y of mass M is put in a non-viscous liquid X kept in a container at rest. The sphere is released and it moves down in the liquid. |
| (T) | ![]() A sphere Y of mass M is falling with its terminal velocity in a viscous liquid X kept in a container. |
Solution
Correct option: B
Correct option: B
Step 1
In case (P), the block slides with constant velocity, so
Also,
In case (T), taking buoyancy as ignored for this matching statement gives
Step 2
For gravitational potential energy of X, check whether X moves upward. In (Q), the whole lift moves upward with constant velocity, so X gains gravitational potential energy continuously.
In (S), as the sphere moves down in the liquid, the liquid/container system X is displaced upward. The same conclusion is taken for (T). Thus statement (B) matches (Q), (S), (T).
Step 3
For mechanical energy of
In (P), Y moves down the rough incline with constant speed, so mechanical energy decreases. Similar decrease occurs in (R) and (T). Hence statement (C) matches (P), (R), (T).
Step 4
For the torque of the weight of Y about P, the torque is zero only when the line of action of
This happens in case (Q). Therefore statement (D) matches (Q).
Step 5
Combining the matches:
This corresponds to option B.
