Electrostatics PYQIIT-JEE 2009 Paper 1 Offline
Six point charges, each of the same magnitude q, are arranged in different manners as shown in Column II. In each case, a point M and a line PQ passing through M are shown. Let E be the electric field and V be the electric potential at M (potential at infinity is zero) due to the given charge distribution when it is at rest. Now, the whole system is set into rotation with a constant angular velocity about the line PQ. Let B be the magnetic field at M and
| Column I | Column II | ||
|---|---|---|---|

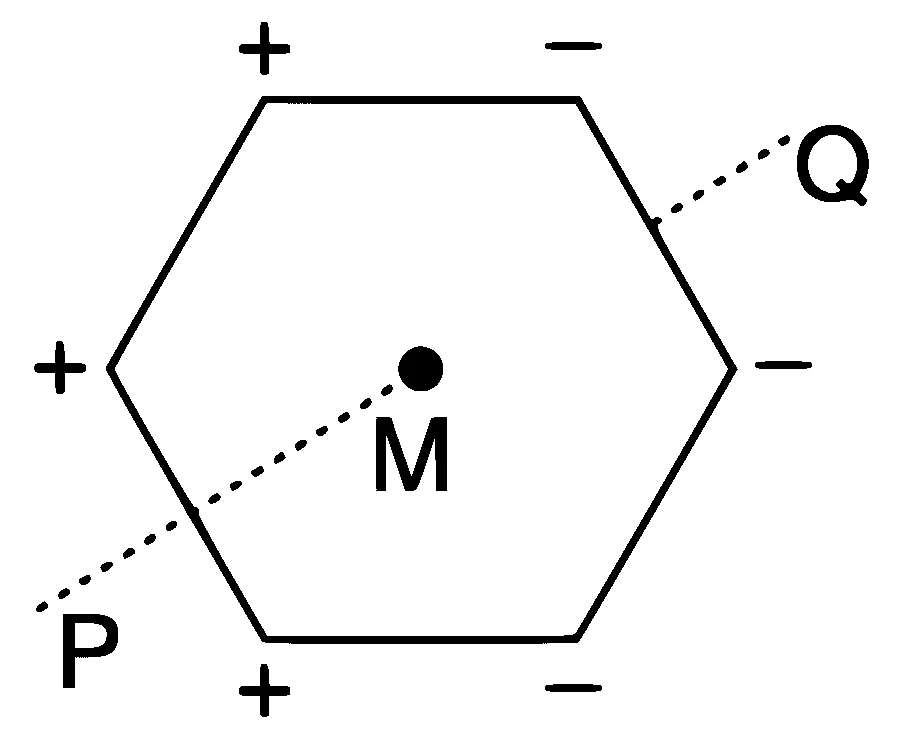

| (A) | (P) | ![]() Charge are at the corners of a regular hexagon. M is at the centre of the hexagon. PQ is perpendicular to the plane of the hexagon. | |
| (B) | (Q) | ![]() Charges are on a line perpendicular to PQ at equal intervals. M is the midpoint between the two innermost charges. | |

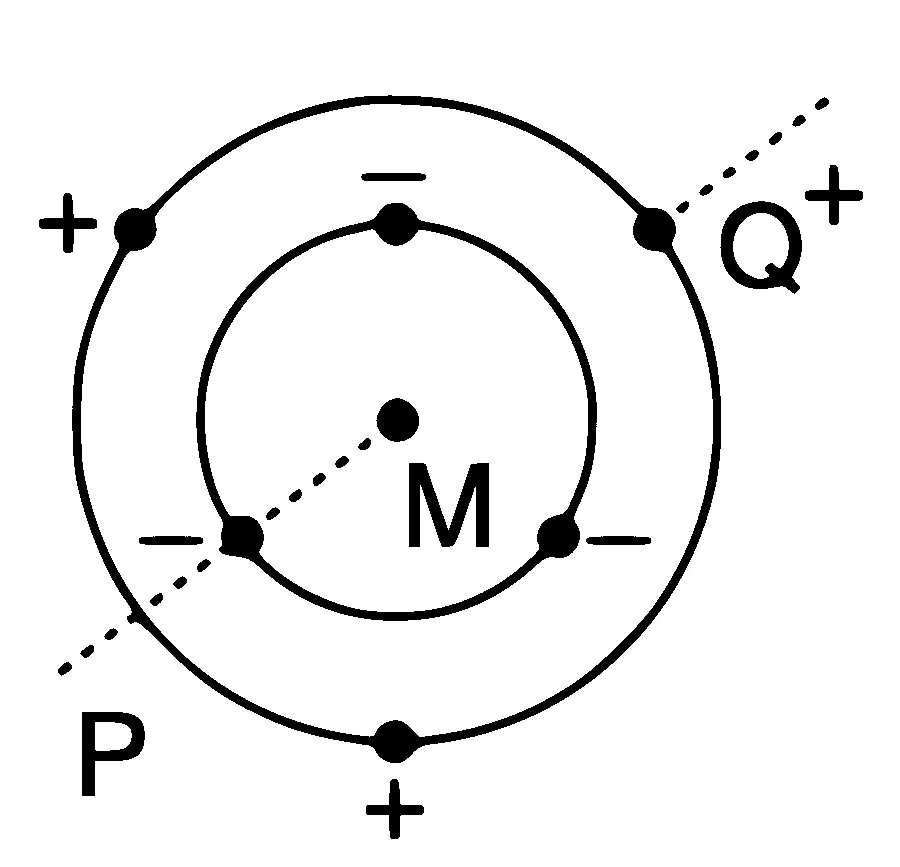

| (C) | (R) | ![]() Charges are placed on two coplanar insulating rings at equal intervals. M is the common centre of the rings. PQ is perpendicular to the plane of the rings. | |
| (D) | (S) | ![]() Charges are placed at the corners of a rectangle of sides a and 2a and at the mid points of the longer sides. M is at the centre of the rectangle. PQ is parallel to the longer sides. | |

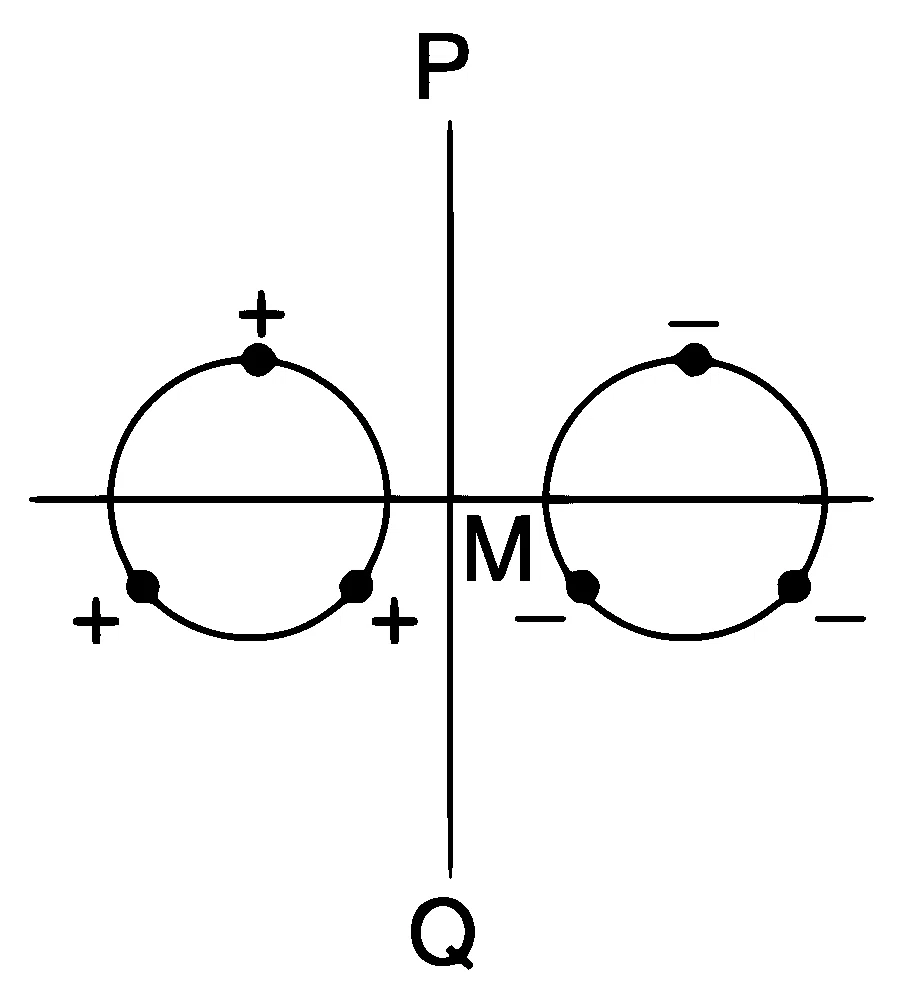

| (T) | ![]() Charges are placed on two coplanar, identical insulating rings are equal intervals. M is the midpoint between the centres of the rings. PQ is perpendicular to the line joining the centres and coplanar to the rings. |
Solution
Correct option: C
Correct option: C
Step 1
Check each arrangement for symmetry at point M. Opposite charges or symmetric rings can cancel
Step 2
For case (P), the hexagonal symmetry gives cancellation at the centre, and the rotating arrangement gives no net magnetic effect:
Step 3
For cases (Q) and (T), the electric field is non-zero but the potential and magnetic quantities cancel:
Step 4
For cases (R) and (S), symmetry makes the electric field zero, but the potential is non-zero; on rotation, the equivalent currents give non-zero magnetic field and magnetic moment:
Step 5
Thus
