Electromagnetic Induction PYQIIT-JEE 2009 Paper 1 Offline

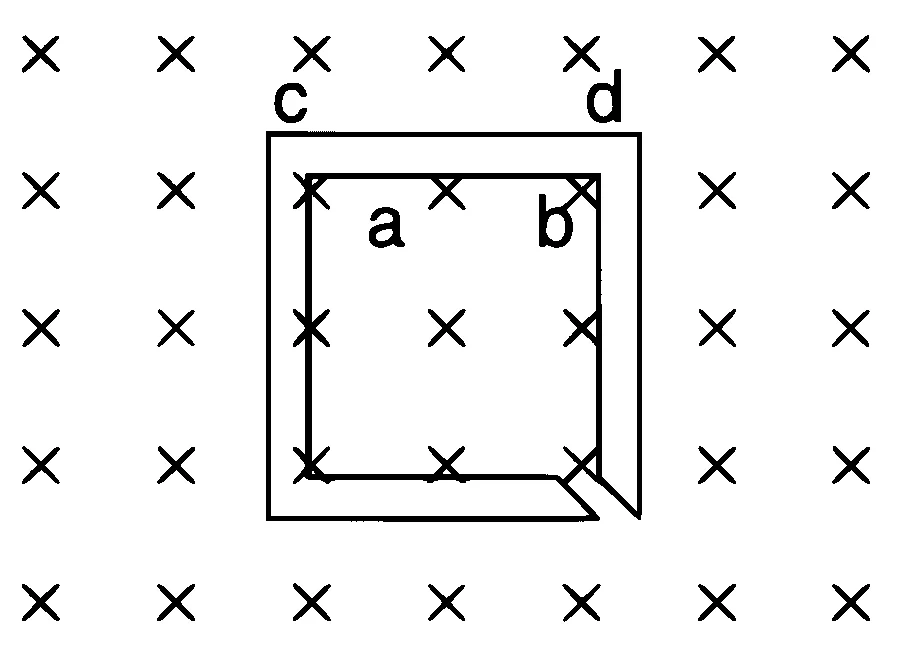

The figure shows certain wire segments joined together to form a coplanar loop. The loop is placed in a perpendicular magnetic field in the direction going into the plane of the figure. The magnitude of the field increases with time.

Solution
Correct option: D
Correct option: D
Identify flux change
The magnetic field is directed into the plane and its magnitude is increasing. Therefore, the inward magnetic flux through the loop is increasing.
Apply Lenz's law
The induced current must oppose this increase. Hence it must produce magnetic field out of the plane.
Fix current sense
A current producing outward magnetic field is anticlockwise. Since the outer loop encloses a larger area than the inner loop, the effective induced current direction follows this anticlockwise sense.
Read segment directions
On segment
Thus
