Simple Harmonic Motion PYQIIT-JEE 2008 Paper 2 Offline
Column I gives a list of possible set of parameters measured in some experiments. The variations of the parameters in the form of graphs are shown in Column II. Match the set of parameters given in Column I with the graphs given in Column II. Indicate your answer by darkening the appropriate bubbles of the 4
| Column I | Column II | ||
|---|---|---|---|

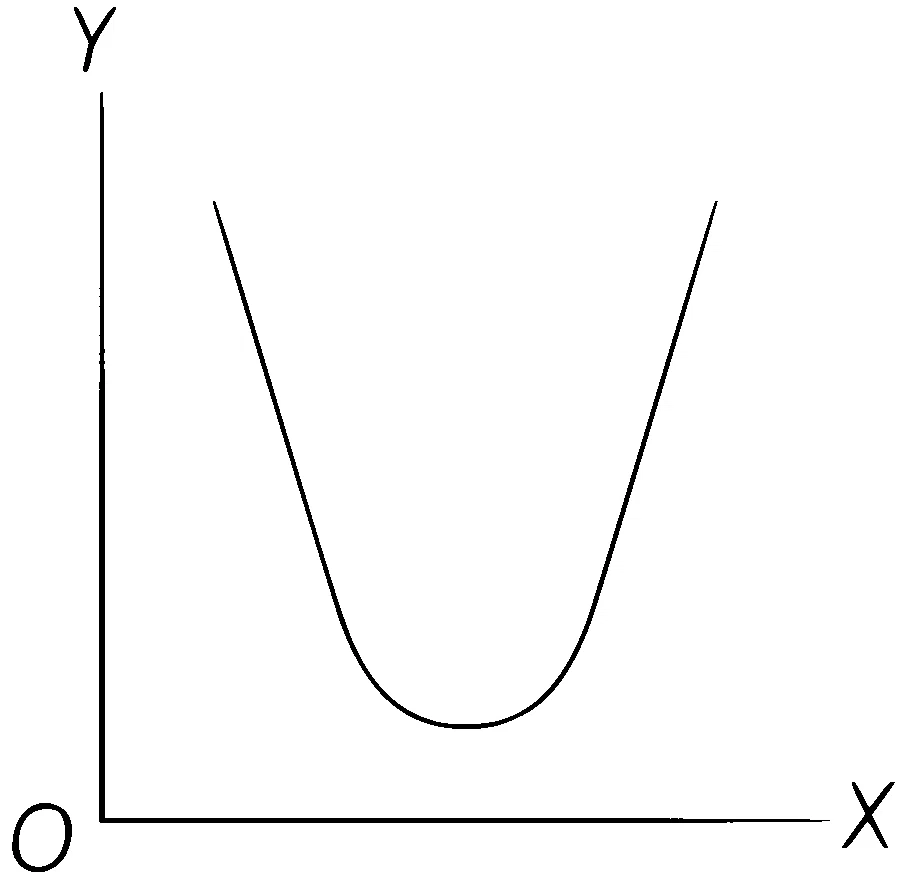

| (A) | Potential energy of a simple pendulum (y-axis) as a function of displacement (x) axis | (P) | ![]() |
| (B) | Displacement (y-axis) as a function of time (x-axis) for a one dimensional motion at zero or constant acceleration when the body is moving along the positive x-direction | (Q) | ![]() |
| (C) | Range of a projectile (y-axis) as a function of its velocity (x-axis) when projected at a fixed angle | (R) | ![]() |
| (D) | The square of the time period (y-axis) of a simple pendulum as a function of its length (x-axis) | (S) | ![]() |
Solution
Correct option: A
Answer: A
Check pendulum potential energy
For a simple pendulum, potential energy is minimum at the mean position and maximum at the extreme position. For small oscillations,
Check displacement-time motion
The slope of an
Check projectile range
For fixed projection angle,
Check pendulum time period
For a simple pendulum,
Match with options
The complete matching is
