JEE Advanced
Heat And Thermodynamics PYQIIT-JEE 2008 Paper 2 Offline
Column I contains a list of processes involving expansion of an ideal gas. Match this with Column II describing the thermodynamic change during this process. Indicate your answer by darkening the appropriate bubbles of the 4
| Column I | Column II | ||
|---|---|---|---|

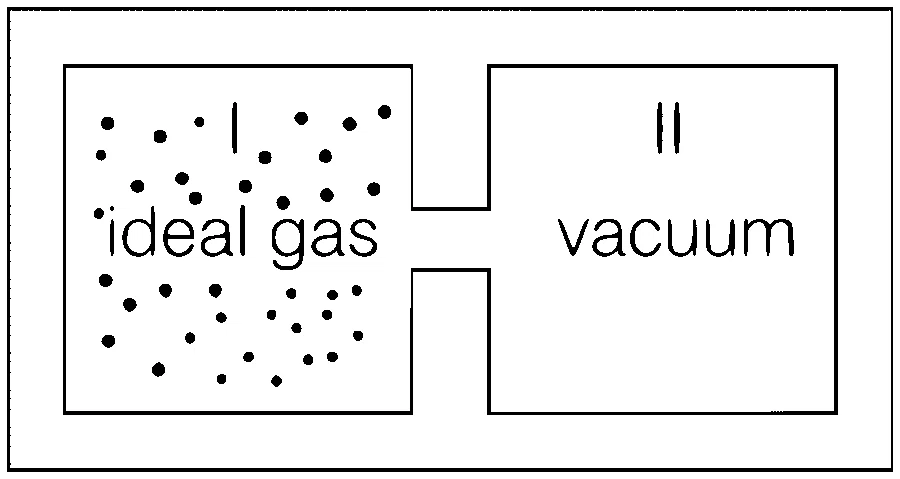

| (A) | An insulated container has two chambers separated by a valve. Chamber I contains an ideal gas and the Chamber II has vacuum. The valve is opened.![]() | (P) | The temperature of the gas decreases |
| (B) | An ideal monatomic gas expands to twice its original volume such that its pressure P | (Q) | The temperature of the gas increase or remains constant. |
| (C) | An ideal monoatomic gas expands to twice its original volume such that its pressure P | (R) | The gas loses heat |

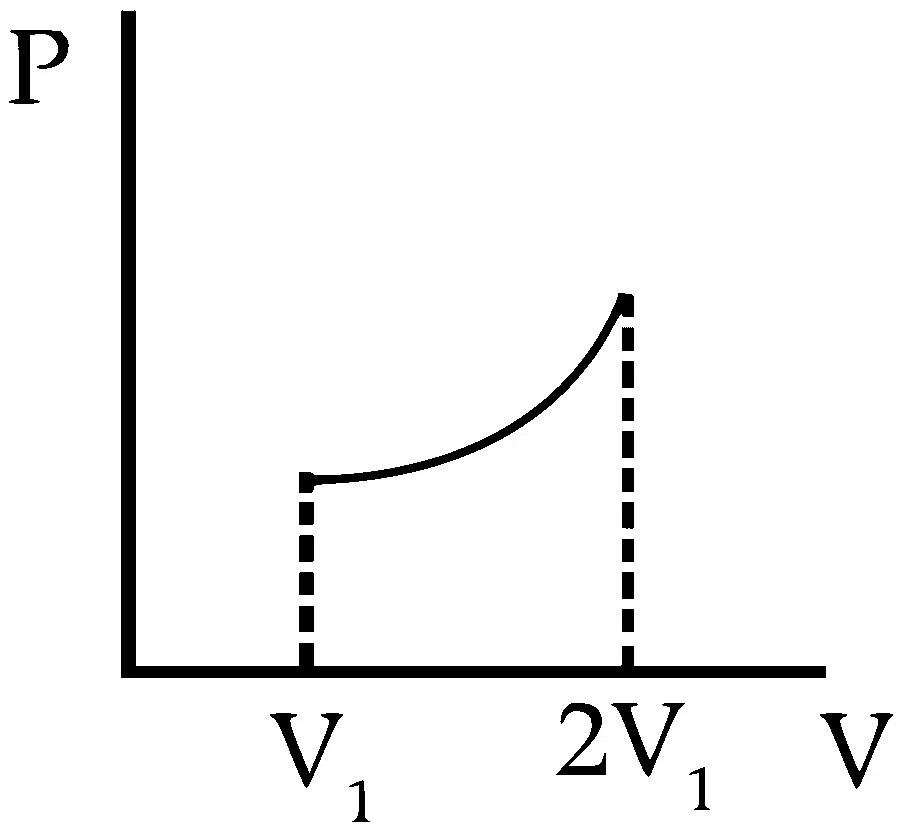

| (D) | An ideal monoatomic gas expands such that its pressure P and volume V follows the behaviour shown in the graph![]() | (S) | The gas gains heat |
Solution
Correct option: D
Answer: D
Free expansion case
For (A), the gas expands into vacuum in an insulated container. Hence
Use first law for (A)
From
Process (B): $$PV^2=$$ constant
Using
Process (C): $$PV^{4/3}=$$ constant
Combining with ideal gas law gives
Graph process (D)
For (D), the graph shows
