JEE Advanced
Geometrical Optics PYQIIT-JEE 2006

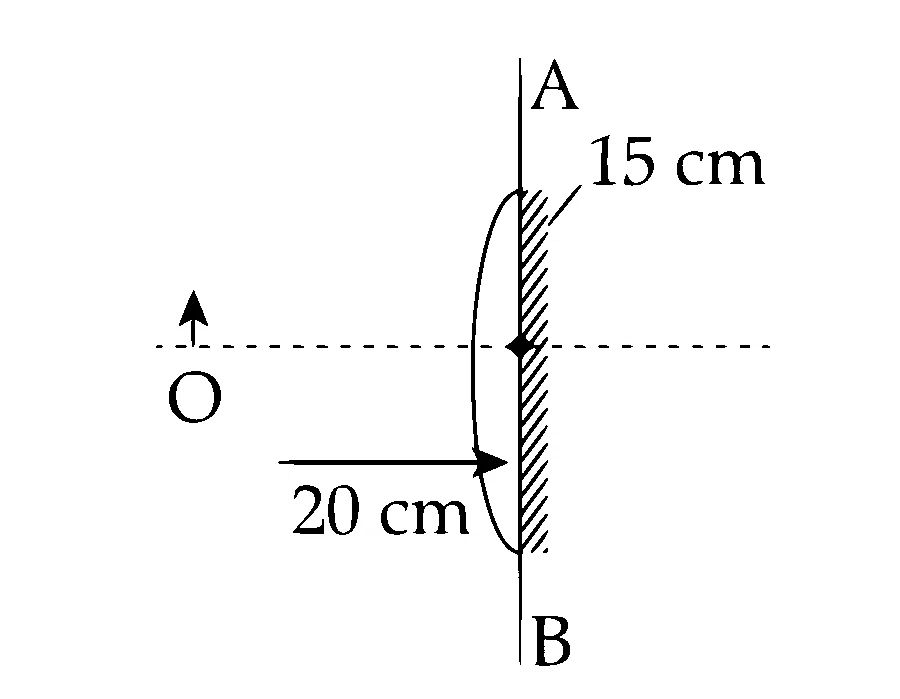

A point object is placed at a distance of 20 cm from a thin plano-convex lens of focal length 15 cm , if the plane surface is silvered. The image will form at

Solution
Correct option: C
Answer: C. The image forms 12 cm left of AB.
Use the lens focal length relation
For the plano-convex lens,
Account for silvering
When the plane face is silvered, the system behaves like a concave mirror formed by the lens surface. Its effective focal length is
Apply mirror formula
Using the Cartesian sign convention, the object is at
So,
Find image position
Interpret the sign
The negative sign means the image is formed on the left side of the system. Hence, the image is 12 cm left of AB.
