Moving Charges And Magnetism

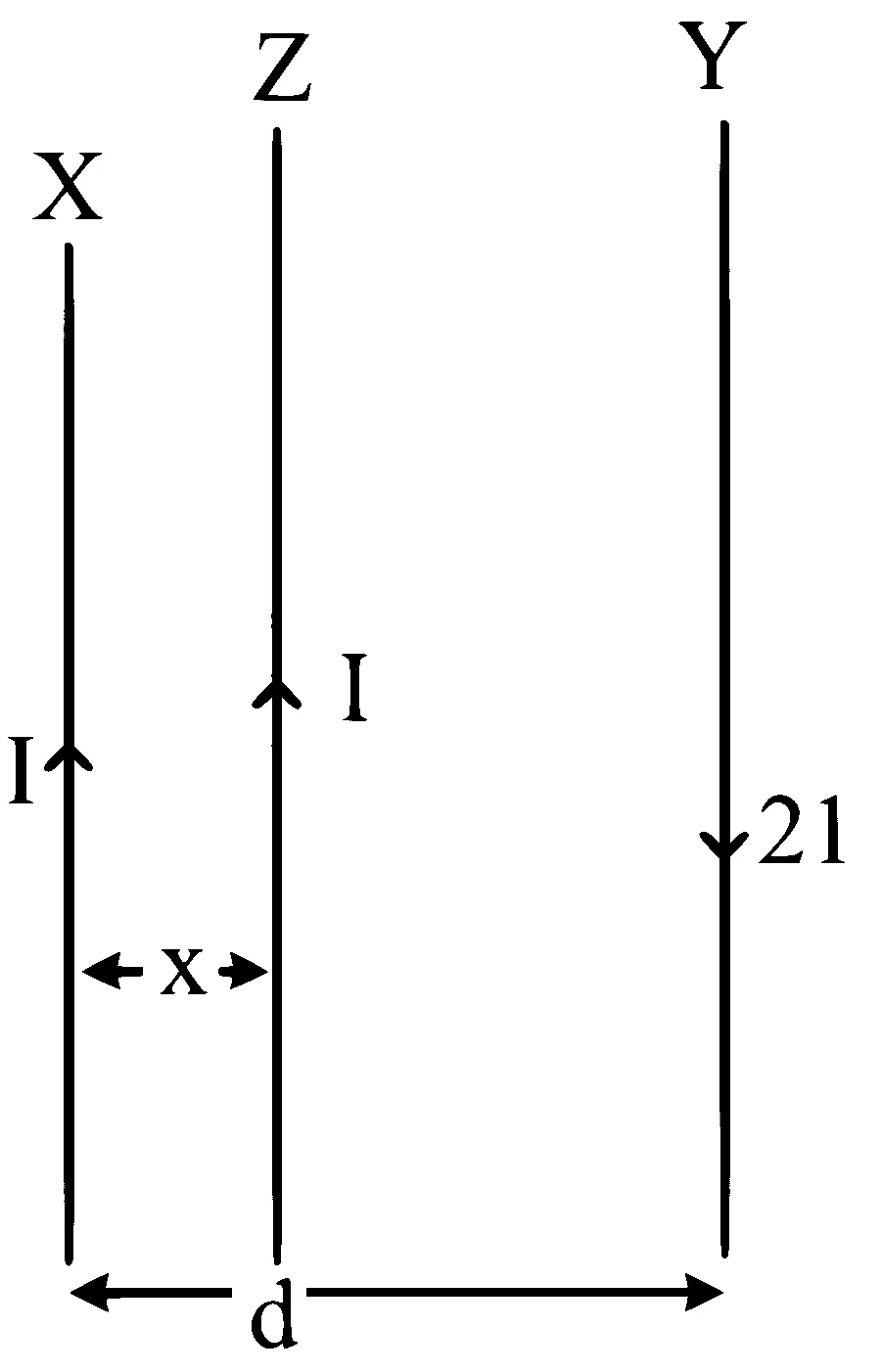

Two long parallel conductors $X$ and $Y$ are placed vertically at a distance $d$ apart. Conductor X carries a current I upwards and conductor Y carries a current 21 downwards. A third long conductor Z is placed parallel to both X and Y and between X and Y . If Z carries a current I upwards and is at a distance $x$ from conductor X , then:

A. All the conductors are in equilibrium and the net force on Z is zero

B. The net force on Z is $\frac{\mu_0 I^2}{2 x \pi}\left[\frac{d+x}{d-x}\right]$ towards X

C. The net force on Z is $\frac{\mu_0 I^2}{2 x \pi}\left[\frac{d+x}{d-x}\right]$ towards Y

D. The net force on Z is $\frac{\mu_0 I^2}{2 x \pi}\left[\frac{d-x}{d+x}\right]$ towards Y
