Alternating Current PYQCOMEDK 2022
MCQ+1 / -02022

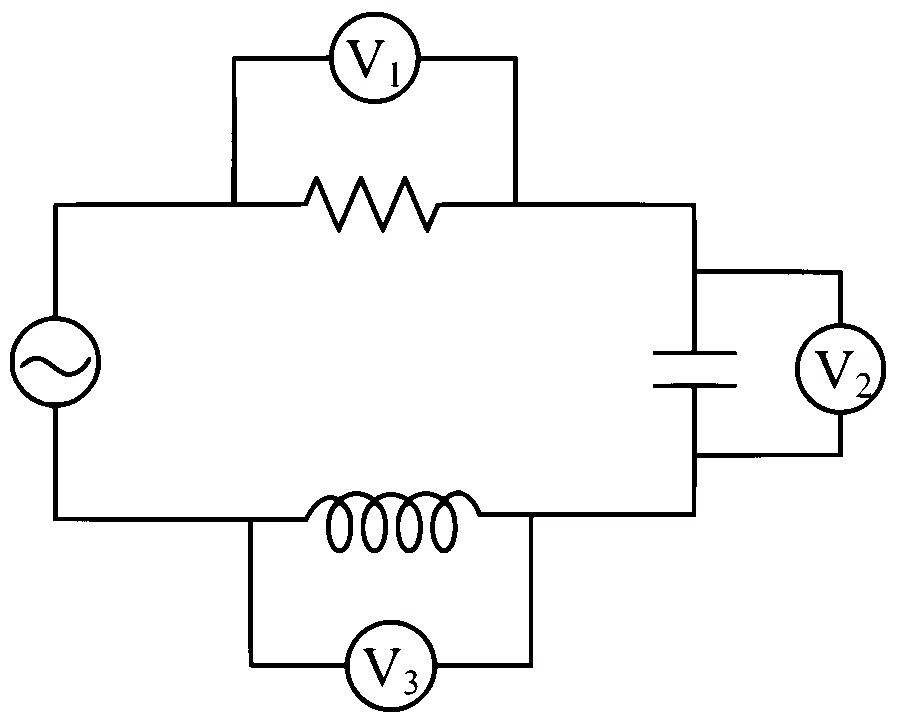

A series L-C-R circuit is connected to an AC source of 220 V and 50 Hz shown in figure. If the readings of the three voltmeters

Solution
Correct option: B
Answer: 1.0 H, 5
Step 1
The resistor voltmeter reading gives the rms current:
Step 2
Use the inductor voltage to find inductive reactance:
Step 3
Since
Step 4
Use the capacitor voltage to find capacitive reactance:
Step 5
Now
