Ray Optics PYQBITSAT 2025

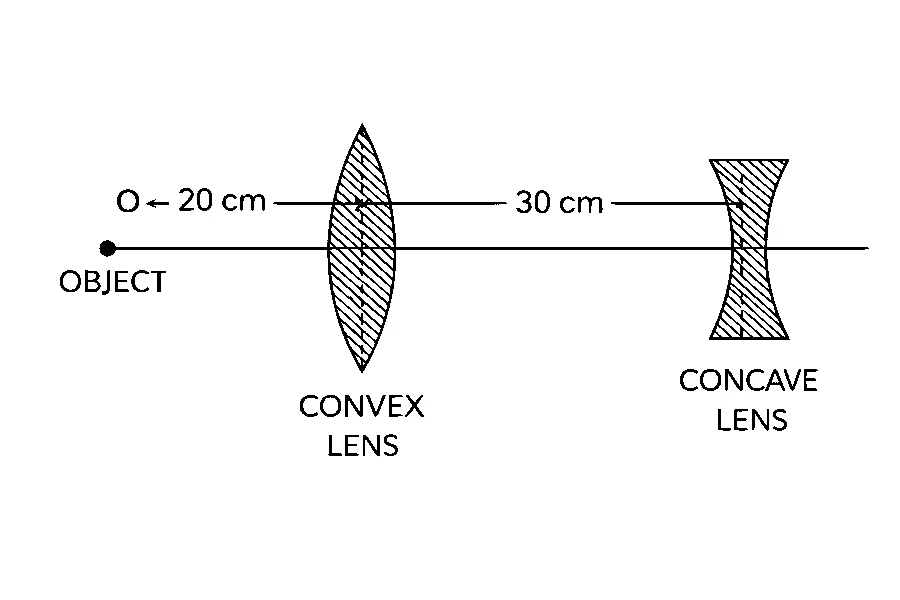

In given lens combination, each lens is of focal length 10 cm .

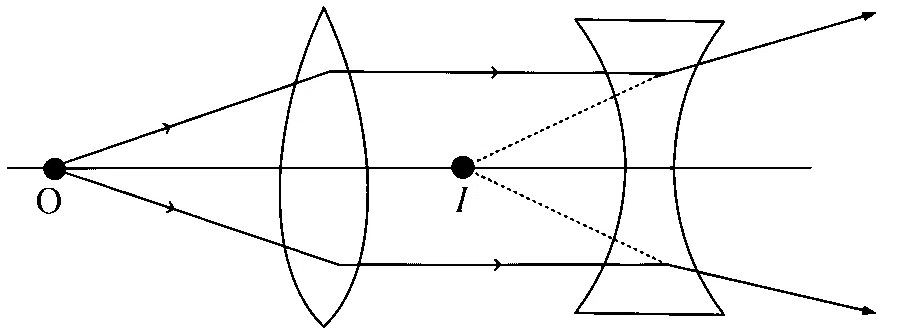

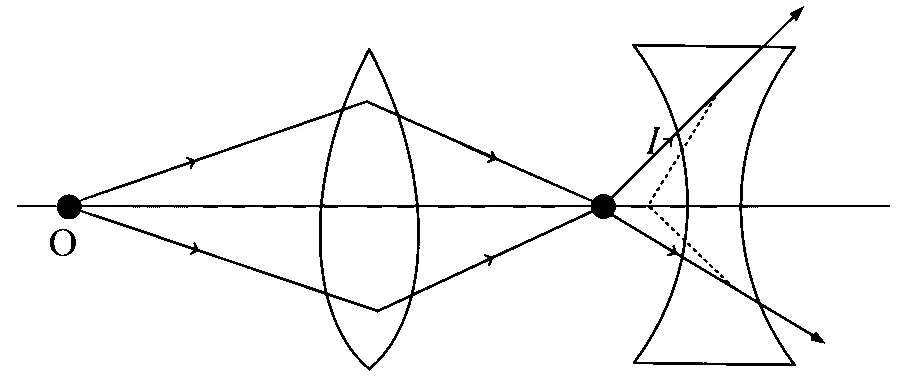

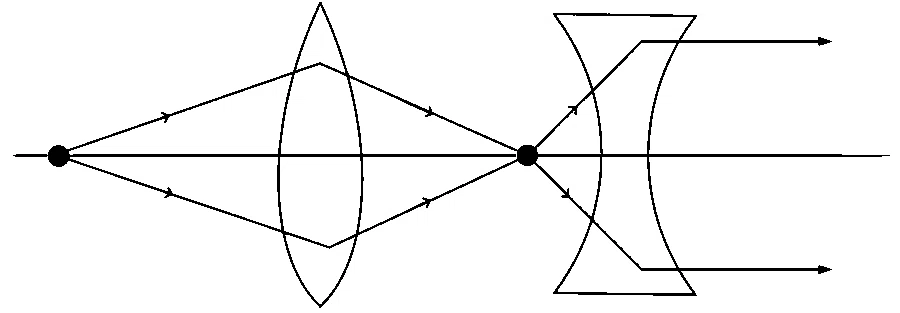

Correct ray diagram for this combination is
Solution
Correct option: C
Answer: C
Use the first lens
The first lens is convex with focal length
Locate its image
For a convex lens, an object at
Effect of the second lens
These rays then meet the concave lens, which makes the rays diverge.
Final image
The diverged rays appear to come from a virtual image
