Semiconductor Devices And Logic Gates PYQBITSAT 2022
MCQ+3 / -12022

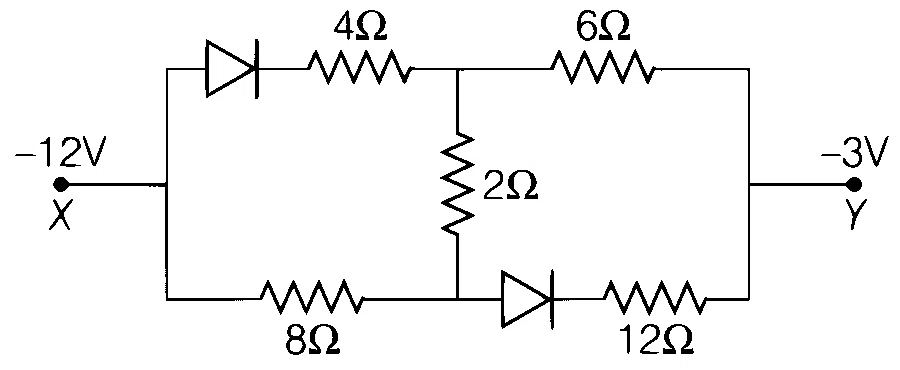

In the following circuit the equivalent resistance between X and Y is .........

Solution
Correct option: C
Answer: 16
Check diode biasing
From the circuit, point X is at a lower potential than point Y.
Replace the diodes
Both diodes are therefore reverse biased, so they behave like open circuits.
Use the remaining path
The effective resistors between X and Y are now in series:
