Semiconductor Devices And Logic Gates PYQAP EAPCET 2022 - 4th July Morning Shift

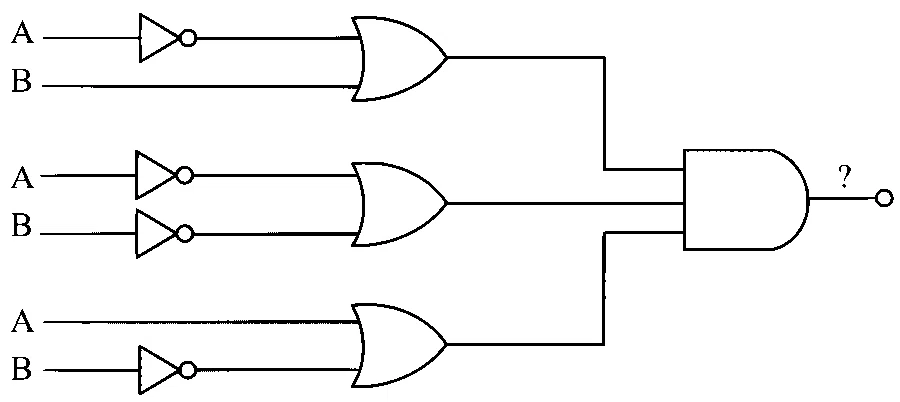

Output of following logic circuit is

Solution
Correct option: A
The circuit output matches option A.
Identify Gate Outputs
Read the three intermediate outputs from the circuit as the Boolean sums:
\$\$(\bar{A}+B),\quad (\bar{A}+\bar{C}),\quad (B+\bar{C})\$\$
Combine At Final Gate
The final gate combines these three terms by OR operation, so the total output is:
\$\$Y=(\bar{A}+B)+(\bar{A}+\bar{C})+(B+\bar{C})\$\$
Match With Options
This expression is exactly the same as option A.
