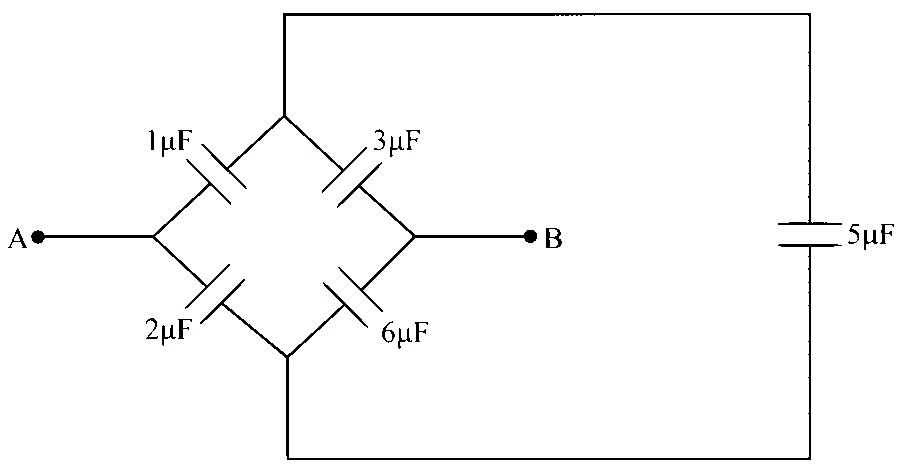

The capacitance between the points A and B in the following figure.

Solution
Correct option: B
Equivalent capacitance:
Step 1
Redraw the network as a Wheatstone bridge of capacitors. Compare the arm ratios:
Step 2
Since the ratios are equal, the bridge is balanced. Therefore, the middle capacitor
Step 3
The circuit now reduces to two series combinations connected in parallel between A and B:
Step 4
Substitute the given capacitances:
Hence, the correct answer is B.
