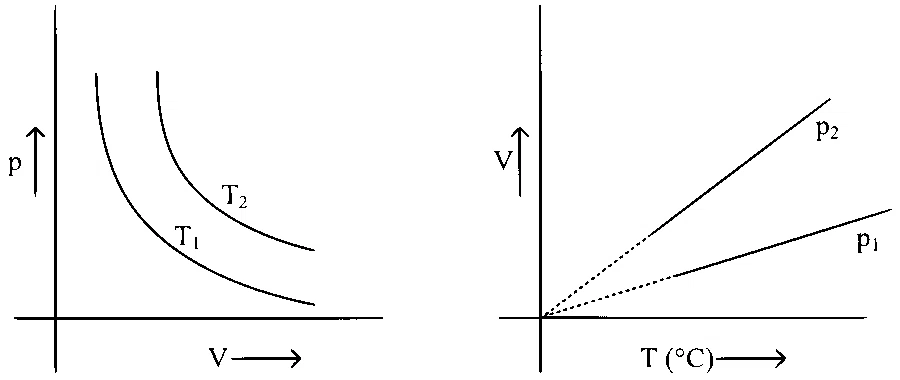

From the following plots, find the correct option.

Solution
Correct option: D
The correct option is D:
Compare Temperatures
In the first plot, take a horizontal line. This keeps pressure constant.
Use Volume Trend
At constant pressure, temperature is directly proportional to volume:
Compare Pressures
In the second plot, take a vertical line. Here volume comparison gives
Apply Inverse Relation
For the gas relation
Final Choice
Thus, the correct relation is
