Semiconductor Electronics

AIIMS 2019

MCQ+1 / -0.332019

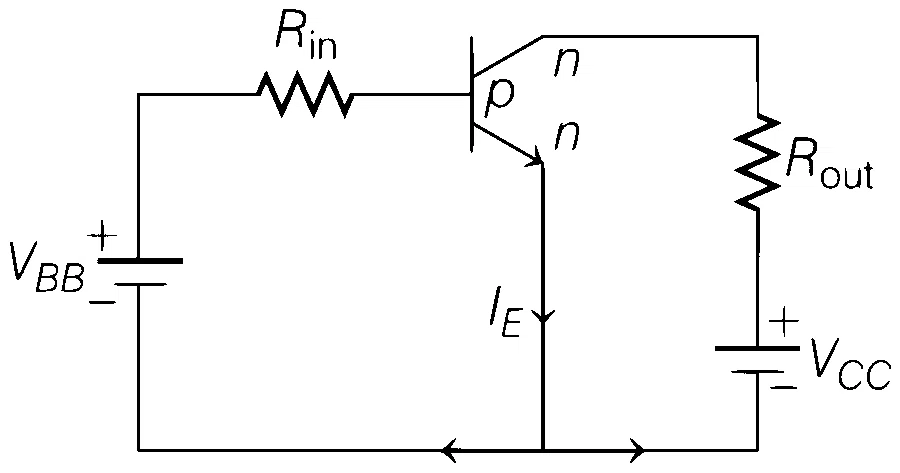

The given transistor operates in saturation region then what should be the value of \(V_{B B}\) ?


$$\begin{aligned} & \left(R_{\text {out }}=200 \Omega, R_{\text {in }}=100 \mathrm{~k} \Omega, V_{C C}=3 \mathrm{~V},\right. \\\\ & \left.V_{B E}=0.7 \mathrm{~V}, V_{C E}=0, \beta=200\right) \end{aligned}$$


AIIMS 2019 Physics - Semiconductor Electronics Question 6 English
