Moving Charges And Magnetism PYQAIIMS 2018
MCQ+1 / -0.332018

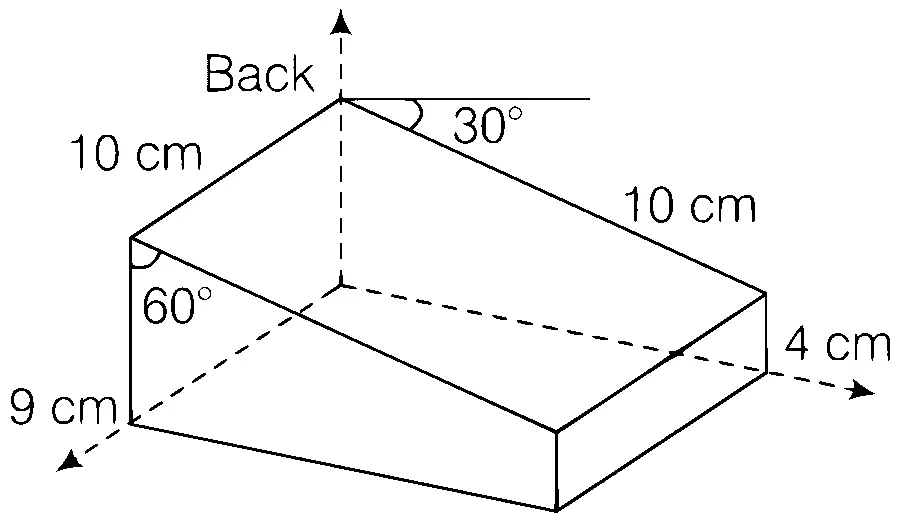

Consider the following figure, a uniform
magnetic field of 0.2 T is directed along the
positive X-axis. The magnetic flux through
top surface of the figure.

Solution
Correct option: C
The magnetic flux through the top surface is 1.0 m-Wb.
Use magnetic flux formula
Magnetic flux through a plane surface is
Identify the angle
For the top face, the surface normal makes an angle of
Substitute area and field
The area is
Calculate flux
So, the correct option is C.
